Full automatic vacuum impregnation machine controller wiring diagram

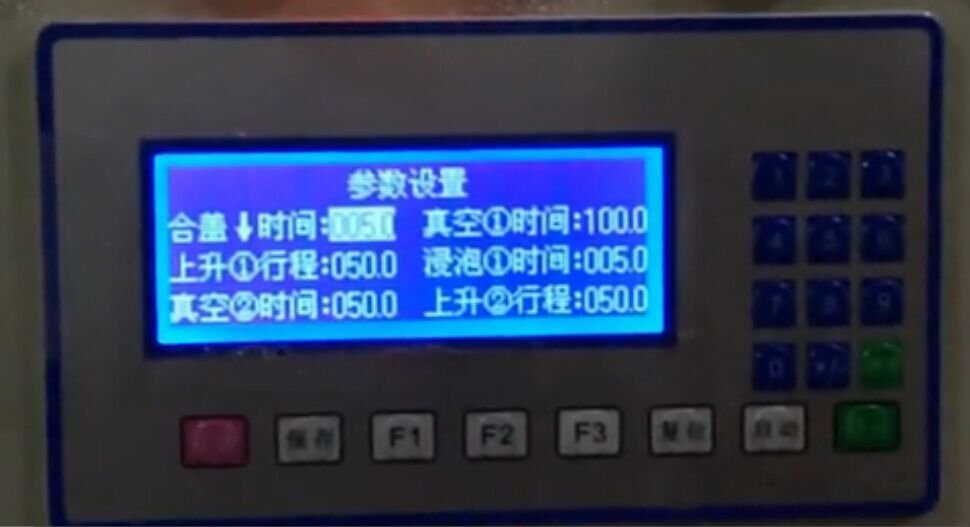

Our Dongguan Hui Yue Technology HY-Z02 automatic containing dipping machine is the automatic switch box cover, secondary automatic vacuum pumping, time-saving and labor-saving, environmental protection, energy saving, to achieve single multi machine operation. Automatically run the program into the product, cover, vacuum pumping 1 -- Ma Dasheng 1 - soak 1 motor rise 2: soak 2 - Exhaust 1 motor fall - vacuum 2 - drip dry exhaust 2 - complete (alarm) -- open the cover to remove the product. (this is the basic process of impregnation work.) The more small Hui with you a detailed HY-Z02 automatic dipping machine controller wiring diagram.
HY-Z02 full automatic vacuum impregnation machine controller wiring diagram
1, above the connecting seat
Y15: Y14: operation indicator light alarm buzzer
24V+:+24V Y13: standby output
Y12: closed solenoid valve solenoid valve to open the cover: Y11
24V+:+24V output: Y10 exhaust solenoid valve
Y09: Y08: vacuum air solenoid valve relay
24V+:+24V Y07 Y06: standby output
+5V:+5V output +5V:+5V output
Y05 Y04: backup +5V:+5V output
Y03 Y02: alternate +5V:+5V output
Y01: Y00: lifting the lifting direction of pulse
2, the middle connecting seat
GND: side 2 +24V scripts: power socket
3, below the wiring seat
X15: COM: public land reserve
X14: X13: alternate origin induction
X12: COM: common induction limit
X11 X10: X09: standby pressure protection
COM: public X08: standby
X07: COM: common phase anomaly
X05 X04 X03: COM: public land reserve
X02: X01: emergency stop switch
X00: COM: start switch to the public
