Introduction of 0.15*12 unit for automatic casing machine
Our Dongguan Hui Yue technology automatic casing machine is used in conjunction with CNC winding machine, suitable for any manufacturer of CNC winding machine, compatibility can be compatible to the 15 casing to the No. 30. The following by Xiao Bian Hui Yue Technology s Lee for everyone to introduce HY-R20 automatic wear casing machine to 0.15*12 20L casing wear, our Dongguan Hui Yue technology automatic wear casing casing can be compatible 15L casing to 30L casing, the line diameter can be compatible with 0.1 to 1.0 copper wire, enamel insulated wire, insulated wire and so on. So how many 0.15*12 casing is L? So the size of the 0.15*12 shares and how to calculate it? The following is the introduction of a formula for the calculation of the division of the:

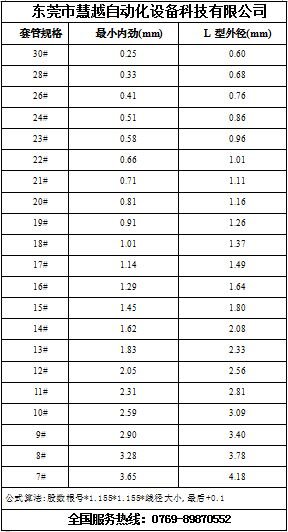

First of all a mistake a lot of people think, the diameter of 0.15*12 strand is the wrong algorithm by 0.15*12 equal to 1.8mm. If this algorithm, then 0.15*12 have 13L, casing, experiments prove that 0.15*12 strands of 13L casing casing completely out several L number casing, so how to calculate 0.15*12 strands? Our computing such a bushing, a formula, by 12 strands of radical *1.155*1.155* line size 0.15, 0.1 last, finally equal to 0.79, so is 0.15*12 strand diameter size is 0.79mm. Here are our casing size list graph and find than 0.79mm wearing big casing machine types, we see, 20L casing casing corresponding to larger than 0.79mm then 0.15*12 20L casing wear is most standard specification and requirements.
