Analysis of high-frequency transformer core assembly machines - high frequency transformer design
Our high-frequency transformer core assembly machine for assembling high-frequency transformer cores encapsulated functionality, core assembly machine is with automatic feeding mechanism, instead of artificial feeding, a person can look after more than one machine, greatly reduce production costs, improve production efficiency; the following analysis with high frequency transformer manufacturers to design high-frequency transformer. (about the Magnetic core Assemble machine)
Generally, a metal material to be crystalline to reduce the iron loss at high frequencies is not easy, and for the amorphous alloy, they are due to the absence of magneto-crystalline anisotropy, metal inclusions and grain boundaries, in addition to which there is no long-range orderly arrangement of atoms, the resistivity higher than the average 2-3 times a crystalline alloy, combined with a fast-cooling method of forming an amorphous ribbon thickness of 15-30 microns, especially for high-frequency power output transformer. Has been widely used in inverter welding power supply, single-ended pulse transformers, high-frequency heating power supply, uninterruptible power supplies, power transformers, communications power supply, switching power transformers and high-energy accelerator core, in frequency 20-50kHz, power of 50kW or less, best transformer core material.

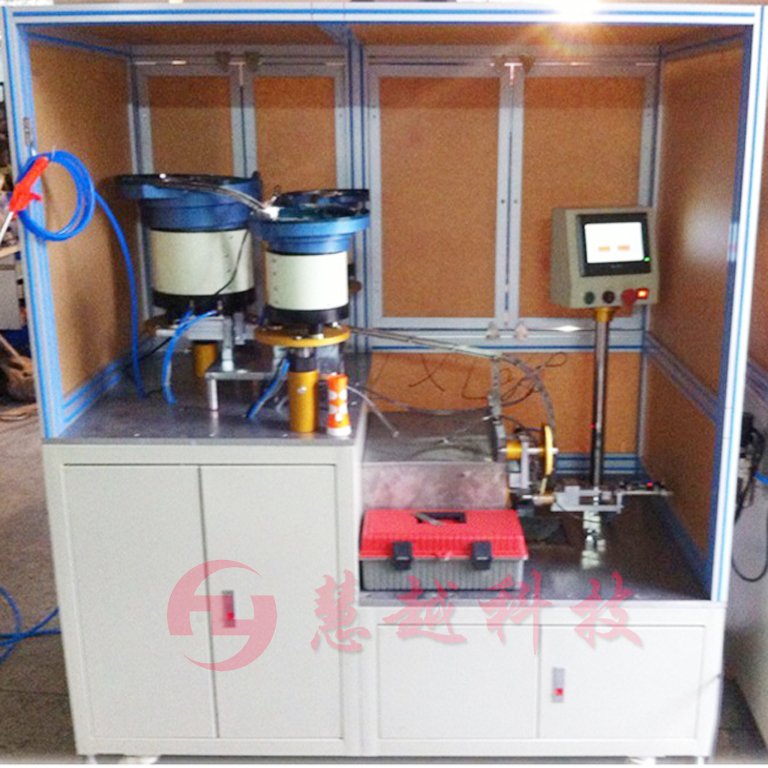

Core assembly machine physical map:
