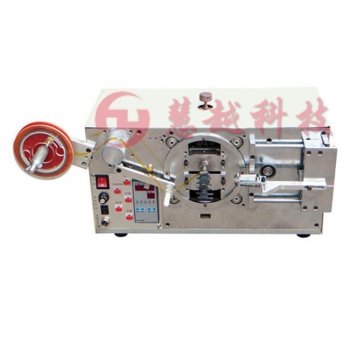

HY-B03 tape machine belt tension relaxation package
Belt tension relaxation package tape machine Details:
Product Specifications: Automatic taping machine
Power: AC220V / 50HZ
Working speed: 2set / pc
Tape inner: 34-77mm apply
External dimensions: L550 × W300 × H260mm
Weight: about 45KG
Features: 1, two-axis package tape, tape axis can be adjusted from the word 25-85mm,
2, viscose fabric from the position can be adjusted, the tension is adjustable.
3, different products, just switch to a different fixtures, intimate and line transformer can pack taping.
First, the device name
Automatic taping machine
Model: HY-B03
Second, the device size
Approximately 300x 550x high 250mm wide
Weighs about 46KG
Third, the basic equipment requirements
1, input: AC220V, frequency 50HZ
2, high reliability CNC-830 Controller: High fixed speed three-axis motor drive gear box, large output, stable operation, high reliability. Operational simplicity, easy management and maintenance fault information display.
3, positioning sensors traditional: micro switch replacement sensors
4, number of packages apron can be arbitrarily set, (the speed can be adjusted)
5, for a package of plastic relaxation of elastic tension device regulation. (You can control the bubble plastic bag, etc.)
5, any vertical, horizontal transformer Jieke plastic bag, and the replacement of species simple, rapid, suitable for diverse operations.
6, the body includes: manual and automatic functions
Fourth, the functional description
HY-B03 automatic package tape machine used in package high frequency electronic transformers, coils and so on.
Efficiency requirements (capacity requirements): Hourly: 1200-1400pcs
Five, institutional materials and electrical materials
A major part of the use of A3 material
2, other S45C hard chrome plating
3. PLC operation controller
