HY - B08 automatic core assembly plastic bags machine - product features:
1, the machine is suitable for EE8.3 - EE25 all products, and for the size of each product to design the structure of the machine.
2, the machine can produce around 60 per minute, which is 3600 products can be produced per hour.
3, the machine is equipped with touch screen, easy to modify operation parameters in the production process.
4, important movements in the machine parts, install four sets of step motor, to ensure the production efficiency at the same time, also prolong the service life of the machine.
5, the machine with card, bad incoming self-checking function, detect the card material adverse incoming direct will be pushed to the waste of the case.
6, tape out, come out, magnetic core, finished off tape will alarm to remind.
7, encountered in the operation of machine fault Mr Most will be in touch screen, easy production personnel at the scene quickly solve the faults in the production process, to resume production.
8, core vibration plate with core dust, reprinted core debris waste box, to keep the machine clean.
9, cylinder, such as slide movement parts of the machine will be sealed to prevent core dust from entering the cylinder, slide rail wear.
10, the customer can choose to test function.
A, function and working process:
1. Functions: automatically after the transformer core, skeleton assembly and plastic bags.
2. The working process: skeleton feeding - magnetic core material on - on the magnetic core material - assembly - plastic bags - >
Second, the equipment technical parameters:
Control mode: programmable controller (PLC) and 7.1 inch touch screen input parameter Settings and instructions
Work style: automatic/manual/simplex cycle
Feeding way: automatic feeding
Production speed: 58, 58 PCS/min
Power supply voltage: AC220V 50 to 60 hz
Air pressure: 0.4-0.6 Mpa
Machine size: 1900 mm, 900 mm wide, 1500 mm long
Three, can be in accordance with the requirements of customers products and customized various non-standard automation equipment, fixture, such as customers need more would like to ask you, we will make the machine more perfect to join.
Four, hui, the after-sales service guarantee
One year free warranty 1, host, lifelong maintenance cost.
2, independent research and development, production and sales.
3, 10 years of experience in automation manufacturing.
4, spare parts supply at any time.
5, tailor, absolute zero risk.
6, free technical support and perfect customer service.

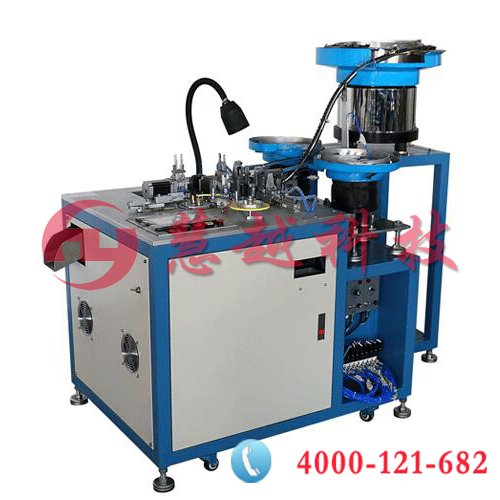

Here are HY - B08 automatic core assembly plastic bags machine hd operation field image:
