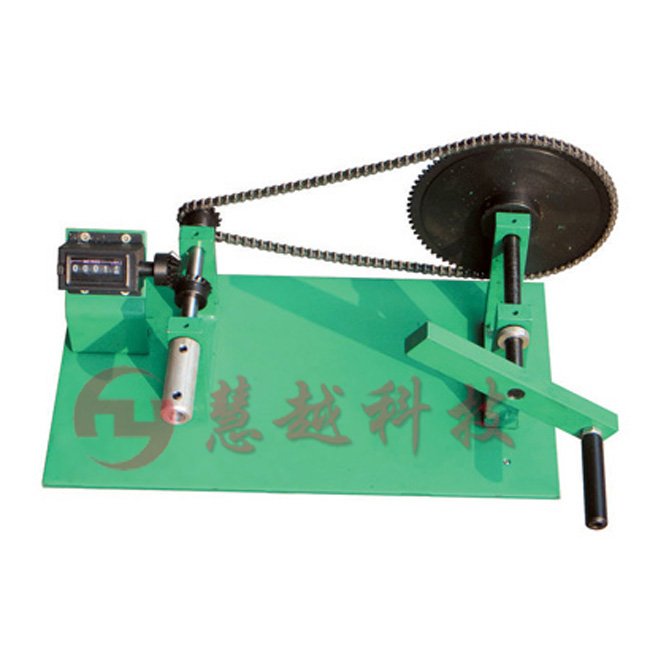

HY-R02 hand transformer winding machine Details
Hand transformer winding machine parameters:
Size: 420 * 290 * 250mm
Weight: 11kg
Power supply voltage: 220V 50Hz
Counting range: 0-9999 ring
The maximum diameter of the coil is suitable mold: 400 mm
Applicable coil maximum mold width: 150 mm
Applicable wire diameter: 2.50 mm
Drive ratio: fast 1: 6; Medium 1: 1.5; slow 1: 1 third gear
Customizable with motor drive, speed is less than 500 r / min
Count resolution: 1 lap
Function: winding package various lines, including tape, copper.
Features: hand-winding machine for a wide range winding can be in various forms, fixtures easy to replace. Hand wheel and spindle rotation speed ratio of 1:10 flexible rotation. High-performance counter accurate, plus or minus count.
