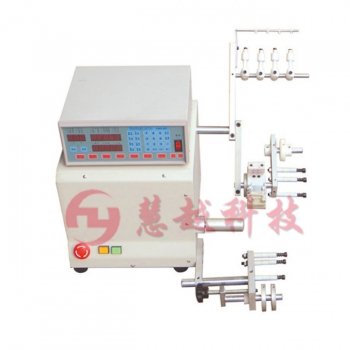

HY-R06 Single Axis CNC winding machine (BLDC) Details
First, the device name
Single Axis CNC winding machine (BLDC)
Model: HY-R06
Second, the device size
Approximately 560x width 350x height 410mm (not including wire frame)
Weighing about 30KG
Third, the basic equipment requirements
1, input: AC220V, frequency 50HZ
2, using the latest synchronization with the lotus-type cable, high precision, ultra-intelligent mode.
3, large memory capacity, you can access the 1000 group step sequence.
4, spindle speed reverse 3000-5000RPM (optional)
5, motor: 120W DC brushless
6, the body includes: automatic function
Fourth, Function
1, the controller uses the latest synchronization with the lotus-type cable, high precision, ultra-intelligent mode, a self-test function, including setting error, speeding track and speed than the standard, with a speed detection function, can automatically adjust drop spindle speed to the most stable state.
2, the diameter is set: 0-1.0mm
3, cable distance: 0-100mm
4, roll diameter: 80mm
5, the standard wire diameter: ∮0.03-0.6mm
Five bodies of materials and electrical materials
1, the main part with A3 material
2, the other qualities of aluminum anodic oxidation.
3, the controller, the spindle motor, cable motor with Shenzhen Leisai Ke TECHNOLOGY.
