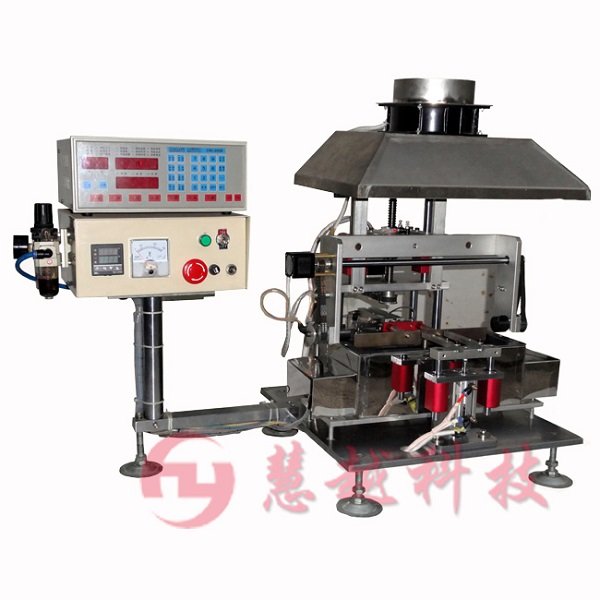

Electronic Components flip-automatic soldering machine and SMT transformers and other high-precision soldering general transformer inductance of use and the general need to solder the product.
◇ variety of sports simulation hand curve, and there is a 360-degree flip angle arbitrary function, SMT solderability and PIN TYPE
Various types of horizontal legislation, and other products.
Flip-automatic soldering machine Features
◇ stepper motor driven up and down movement of the ball screw, a stepping motor with an accuracy of 0.01mm, solder depth and provides accurate speed selection 0-99.
◇ Flip-axis stepper motor direct drive, flip fast, accurate angular positioning and provides 0-99 speed selection.
◇ with pre-soldered, which can effectively reduce splashing solder balling.
◇ fully functional soldering operation. Free to choose the sub-cup, corner, translation and other functions flux agencies
◇ height of solder can be set 0 ~ 76mm.
◇ soldering time, ranging from 0.1 seconds to 9.9 seconds.
◇ dual heat pipes, tin melting time is short, the temperature is stable. Use of lead-free titanium tin stove.
◇ Temperature range up to 500 ℃.
Flip automatic soldering machine - parameters:
Power: AC 220V 50HZ
Pressure: 5kg / cm2
Power: 2.5KW
Overall size: 890 * 560 * 710mm
Furnace size: 300 * 110 * 75 mm
Weight: 79kg
