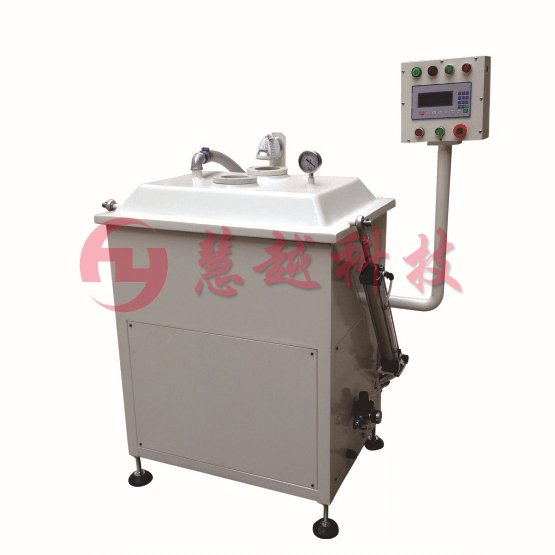

Automatic single-cylinder vacuum impregnation machine HY-Z02- Features:
1. The use of a stepper motor driven precision ball screw drive sub tank lift impregnated, lifting height can be preset; can be preset lift height (sub-groove stroke 60mm; displacement accuracy ± 0.05mm)
2. Screw Jacks bear force, control accuracy, PIN will not glue varnish without secondary tin.
3.CNC core MCU control, can be impregnated with a variety of preset modes, with timely, appropriate functions to eliminate air bubbles;
4. Automatic switch cover, the second automatic vacuum, energy, environmental protection, energy saving, can achieve single multi-machine operation saves time.
5. The overall use of slot 10MM steel production. Double glass viewing window can always see soaking conditions
Horizontal bar vacuum impregnation machine HY-Z02- technical parameters:
Power source: AC380V 50 / 60HZ
Power: 1HP
Standard impregnated with box: 700 * 640 * 300mm + groove 660 * 500 * 80mm
Impregnating plate: 410 * 380mm
Overall size: 900 * 700 * 1400mm + 400 * 250 * 300mm
Weight: 300kg + 20kg
Note: Can be customized according to the actual needs of the customer
Automatic single-cylinder vacuum impregnation operating the whole process of the video, please click: http: //www.cnhuiyue.com/news/news559.html
Hui Yue service: Host free year warranty and lifetime maintenance costs
Hui Yuezong purpose: integrity management, the pursuit of innovation
Hui Yue Reminder: optional HY-Z02 horizontal bar automatic vacuum impregnation machine, look for the scientific and technological quality factory in Dongguan Hui in purchasing our HY-Z02 horizontal bar automatic vacuum impregnation machine at the same time, our company will be a good installation, the test department tested before shipment, can also provide installation video teaching, quality assurance, the company has a professional sales team, customers accumulate more than 500 domestic, reliable, welcome to inquire!
Hui Yue CASES:
1. Shenzhen Jinhua Electronics - delivery accurate delivery rate of 60.7% up to 96% yield from 64% to 98% production capacity 0.8 times.
2. Dongguan Li Minda Electronics - staffed by 300 people, reduced to 200 people, but can also enhance yield 0.5 times average.
3. Dongguan City Dazhong Electronics - Huawei Electronics under Division, the comprehensive production 80000K above, Procurement Division I 8 HY-Z03 parallel bars automatic vacuum impregnation machine
