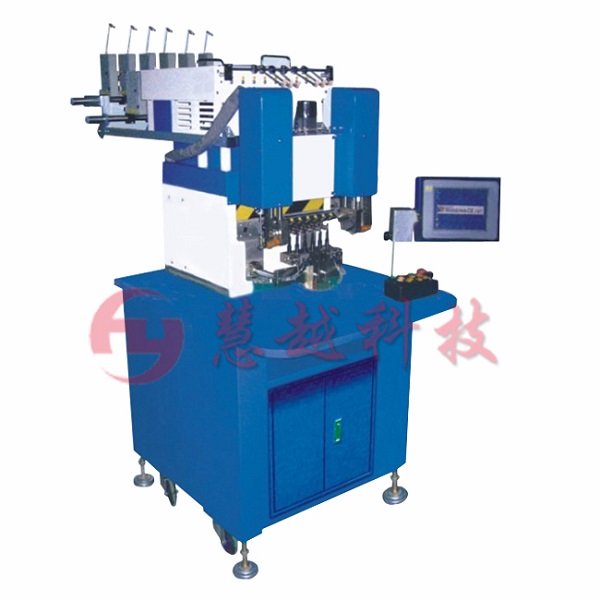

HY-R12 six-axis automatic winding machine Details
Six-axis automatic winding machine - Products:
Six-axis automatic winding machine is mainly for R & D design and production round, shaped air-core coil 0.015-0.5mm, using magnetic tension and PLC system console of high-definition touch-screen display operation, frequency control equipment to ensure that the coil Precision automatic winding wire, cable, custom length, automatic feeding to reduce manual finishing processes lead the main features of a fully automated, high efficiency and stable quality a person can guard multiple machines.
Six-axis automatic winding machine - Main Specifications
Power Specifications: AC 220V 50 / 60Hz
Rated power: 1.5kw
Coil outer diameter: MAX-∮60 (mm)
Coil width: MAX-60 (mm)
Fork Speed: MAX.4500rpm (outer diameter varies according to fork)
Rotatably: 6 stations
Tangentially: hydraulic cutting mode
Winding wire diameter range: 0.015 ~ 0.5mm
Finished wire diameter range: 1.8 ~ 48mm
Wire Wound Fixed Type: hot line / alcohol line
Control Systems: Delta CNC system, touch-screen interface
Weight: 220 ± 20KG
Machine Maximum external dimensions: L1520 * W72
Automatic winding machine is mainly used in: coil, a variety of magnetic cards, headsets, voice coil, small speakers, radio.
Winder - Features:
Unmanned operation or a person to see multiple machines; PLC control system to ensure the machine is running very stable, the failure rate is very low; the use of touch-screen operating system, debugging and maintenance more convenient; quick die design, making similar products retooling cycle greatly shortening; machine fault alerts when the machine will automatically alarm fails to rule out mechanical failure more timely; real-time data statistics, you can keep abreast of the status of machine production
