HY-R18 automatic winding machine plastic bag Details

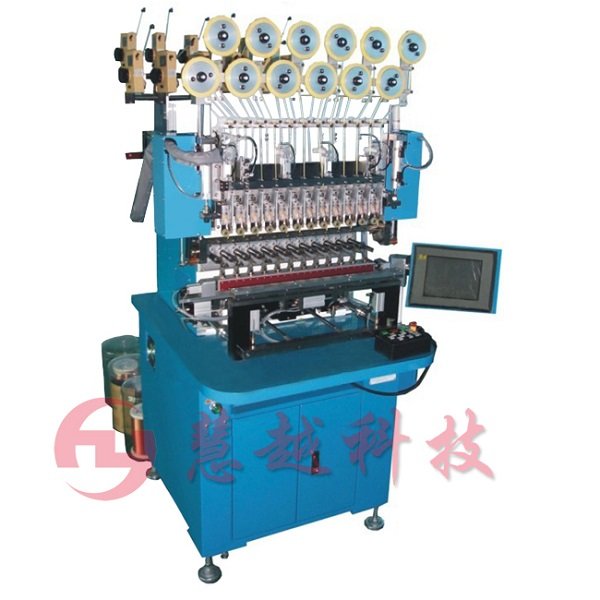

HY-R18 automatic winding machine plastic bag
Product Name: automatic winding machine plastic bag (with encapsulated structure)
a. teach touch interactive, user-friendly interface, easy handling, the cultural program management, easy to learn, five minutes to get started, no keyboard and an external power supply, input, machine time is short
b. An diagnosis, rapid overhaul
NC axis between C. complement, spirally wrapped around the feet
d.CNC servo drive, precise positioning.
E. Axial quick change fixtures
F. high-speed precision, improve the quality and the quality of the winding
G. can be stand-alone operation, can be paired with automated production
H. can be used with automatic exchange of materials, scissors and pneumatic clamp device (special equipment)
Automatic winding machine plastic bag - Size:
Power supply: single-phase SINGLE PHASE 220V ± 10% 50HZ / 60HZ
Power consumption: 2KVA
Control method: Synchronization axis servo control FOUR SPINDLES SYNCHRONAL SERVO CONTROL
Spindle: 12 SPINDLES spindle rotation axis 9000/12000/18000 standard, is reversed REVCLVE IN FORTH WARD AND BACKWARD DIRECTONS
Automatic winding machine plastic bag - Spindle pitch: 45mm
Spindle positioning angle 0 - 360 ° / rev
Displacement accuracy 0.01mm
Spindle positioning accuracy of ± 0.5 °
Use diameter 0.02-0.4mm
Foot-Speed MAX: 150RPM
Cable Speed: 0-200mm / sec
Respect needle moves up to speed: 12m / min
Maximum skeleton outer diameter: 40mm
Maximum width: 90mm
Foot-angle selection: 0-90
Storage Memory Method: USB + DOM64 (256M option)
Using air pressure: 4-6kgf / cm2
Machine Weight (kg): 610kg
Mechanical weight after packing (kg) :: 710kg
Machine Size (mm) :: 800W * 1000L * 1450H mm
Mechanical Packing size (mm): 1300W * 1720L * 1750H mm
