HY-Z10 automatic flip type solder machine: without the manual, the whole process are to operate the machine, instead of manual, including automatic feeding, automatic rosin, automatic soldering, automatic material returning, optional with simultaneous solder two products, or with 360 degree flip function, capacity every day 66000-69000PCS. This machine is equipped with a vibrating plate, and the following main characteristics.

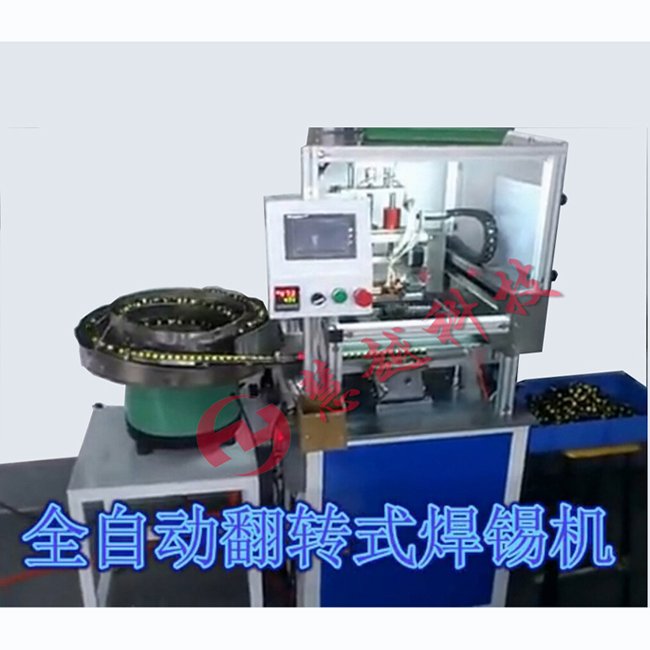

HY-Z10 full automatic flip type solder machine physical map:
1 single chip microprocessor design, more powerful, smaller size, strong anti-interference ability.
2. Memory use flash ROM, large capacity, a 1000 step sequence of solder for data storage, every step of the sequence can be respectively set to 9 kind of solder material, five feature selection, cut off the power supply after soldering data will not be lost.
3 can be aimed at different models and use the occasion to change the operation and operation mode, the use of a wider range of.
4 solder shaft position can be taught or set of keys, data display window can display the current position of the solder.
5 segment positioning speed selection for the 99 solder.
6 solder shaft displacement unit set up a wide range of different specifications of the screw.
7 a set of edit password settings to prevent the setting of the data to be arbitrarily changed.
8 compatibility is strong, can directly replace the same type controller.
9 power can be divided into AC100~120V and 220V~240V models for selection.
