The device configuration of the automatic vacuum with the full automatic vacuum

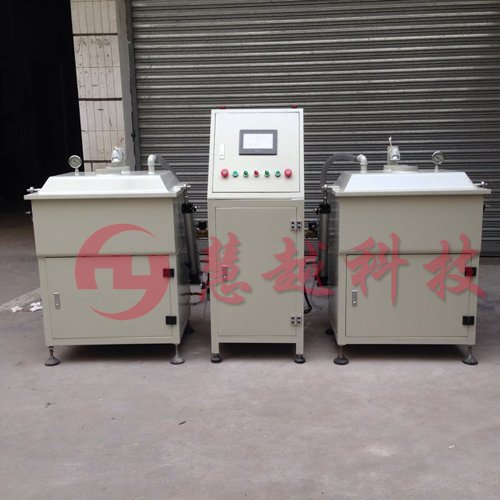

Our HY-Z002 fully automatic vacuum - containing equipment composition: PLC control, vacuum pump, vacuum buffer, dip paint groove, sub - plate, cylinder, screw rod lifting and electrical control part of the combination.
Full automatic vacuum with dipping machine can be used for electrical coils such as micro motors, transformers, power transformers insulation impregnating treatment, can improve the insulating paint penetration ability, increase the rate of filling, so as to improve the overall mechanical strength of the electrical coil, insulating strength and moisture. Mildew and other properties.
Full automatic vacuum impregnation machine step by step into motor drive precision ball screw rod drives the sub tank lifting impregnation and preset lifting height; can be preset lifting height (sub channel, the maximal stroke is 60mm; displacement accuracy of 0.05mm); spiral lift large bearing capacity, high control accuracy, pin can not be stuck on the varnish without secondary tin; CNC singlechip microcomputer to control the core, preset number containing dip patterns, with timely, appropriate to eliminate the bubble functions; automatic switch box cover, secondary automatic vacuum pumping, time-saving and labor-saving, environmental protection, energy saving, to achieve single multi machine operation; integral tank by 10mm plate production. Double glass observation window can be viewed at any time
The more automatic vacuum of the vacuum and the material of the machine:
