Suitable for automatic assembly machine EE core encapsulated core categories
Our core Hui Yue Technology automatic assembly machine is suitable for encapsulating the core function of the melter assembly package for EE series core assembly, EE series core is: EI, EE and ER, ERL, ETD, RM, PQ type so for a variety of types. (about the Magnetic core Assemble machine)
Small transformer core, common are:
EE (sometimes referred to as F) type, EI, C-type ring.
1, F-type: the pros and cons of each layer staggered stacking, magnetic flux leakage is relatively small, the difficulty of the general assembly disassembly;
2, EI type: Similar to F, assembly disassembly easier;
3, C-type: MFL small, small size, good performance, assembly disassembly difficult;
4, the ring: MFL minimum, the best performance, but the most difficult assembly disassembly, especially coil production difficulties.

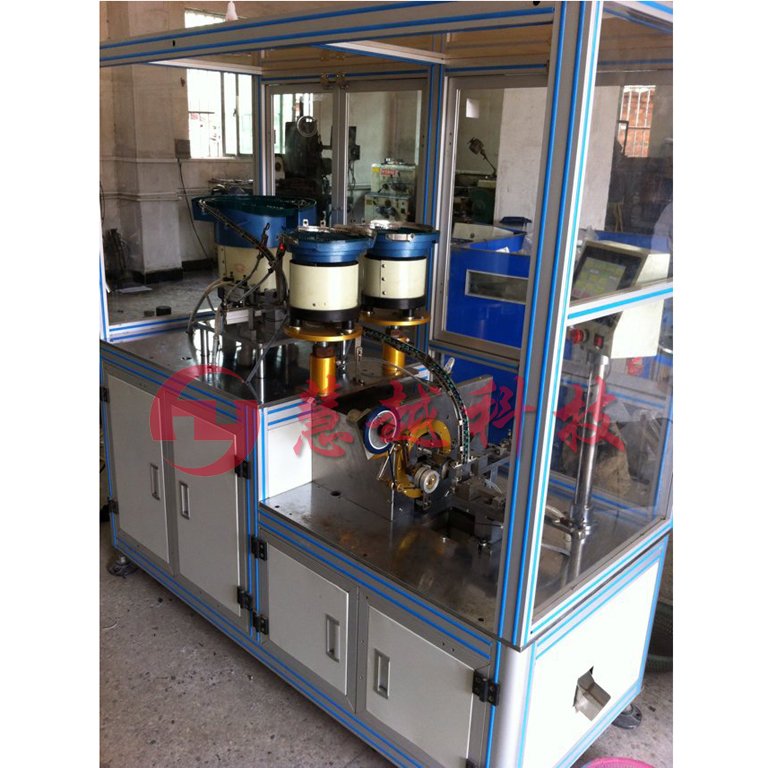

Automated assembly core package melter physical map:
