Core assembly machines - soft core characteristics
Our core Hui Yue Technology is automatic assembly machine transformer core, skeleton assembled and plastic packets; can be customized according to customer requirements for core non-standard automation equipment, fixture. Following by the Science and Technology Li Hui S with you dwell at the core assembly machines - soft core characteristics
(about the Magnetic core Assemble machine)
Magnetic core is made of a soft magnetic material pressed by mixing ferromagnetic particles and insulating medium. Since the ferromagnetic particles is small (high frequency used is 0.5 to 5 microns), and are separated by a nonmagnetic electrically insulating film material, and therefore, one can be isolated from the vortex, the material suitable for high frequencies; the other hand, since the particles a gap between the effect, resulting in a material having a low permeability rate and constant permeability characteristic; and due to the small particle size, the phenomenon of skin is not substantially change the permeability versus frequency will be more stable. Mainly used for high-frequency inductors. Magnetic properties of powder core material mainly depends on the permeability silt, silt size and shape, they fill factor, the content of the insulating medium, molding pressure and heat treatment processes.

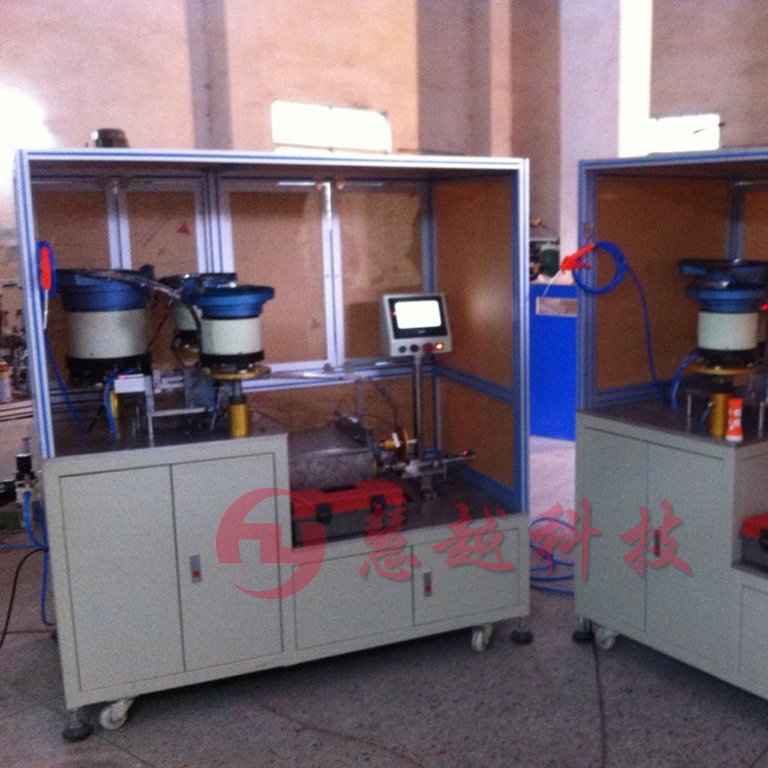

Core assembly machine physical map:
