Automatic assembly machine core encapsulated in a soft magnetic characteristics
Core automatic assembly machine for assembling a variety of plastic bag core, soft is one of them, the core of automatic assembly machine in soft plastic packets which characteristic? Hui Lee S with you more Detailed look. (about the Magnetic core Assemble machine)
Powder cores, ferrite Feature Comparison: MPP Cores: Use ampere-turns <200,50Hz ~ 1kHz, μe: 125 ~ 500; 1 ~ 10kHz; μe: 125 ~ 200;> 100kHz: μe: 10 ~ 125HF magnetic core: using the ampere-turns <500, can be used on a larger power is not easily saturated in a large magnetic field to ensure that the minimum DC drift of the inductance, μe: 20 ~ 125 iron core: Use ampere turns> 800, can not be saturated at high magnetic field, to ensure that the inductance value is preferably superimposed AC and DC stability. Frequency characteristics of stability within 200kHz; but the high-frequency loss, suitable for use below 10kHz. FeSiAlF core: instead of using the iron core, frequency of use may be greater than 8kHz. DC bias capability between MPP and HF. Ferrite: low saturation flux density (5000Gs), the minimum DC bias capability.

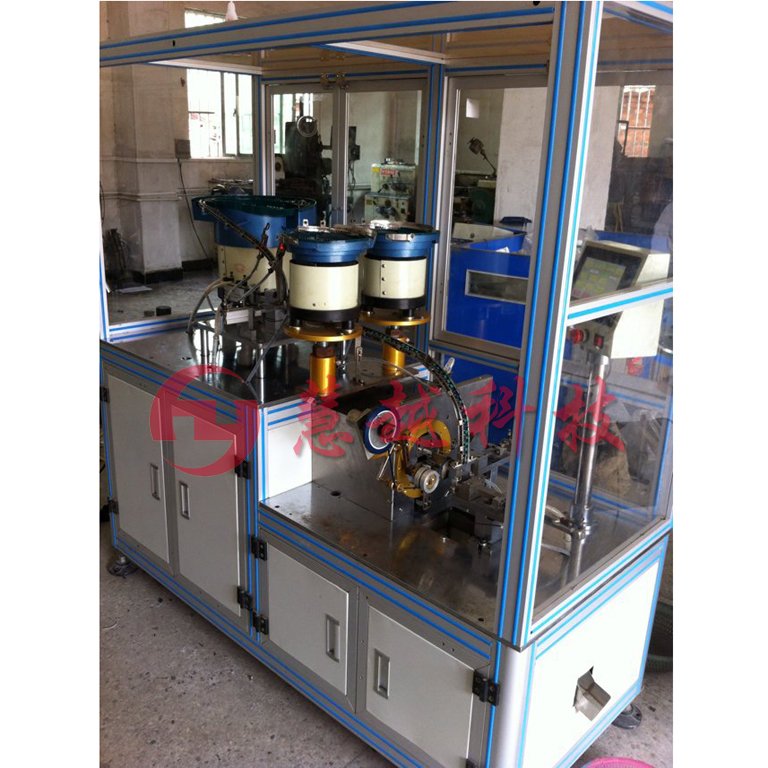

Automatic assembly machine core encapsulated reference chart:
