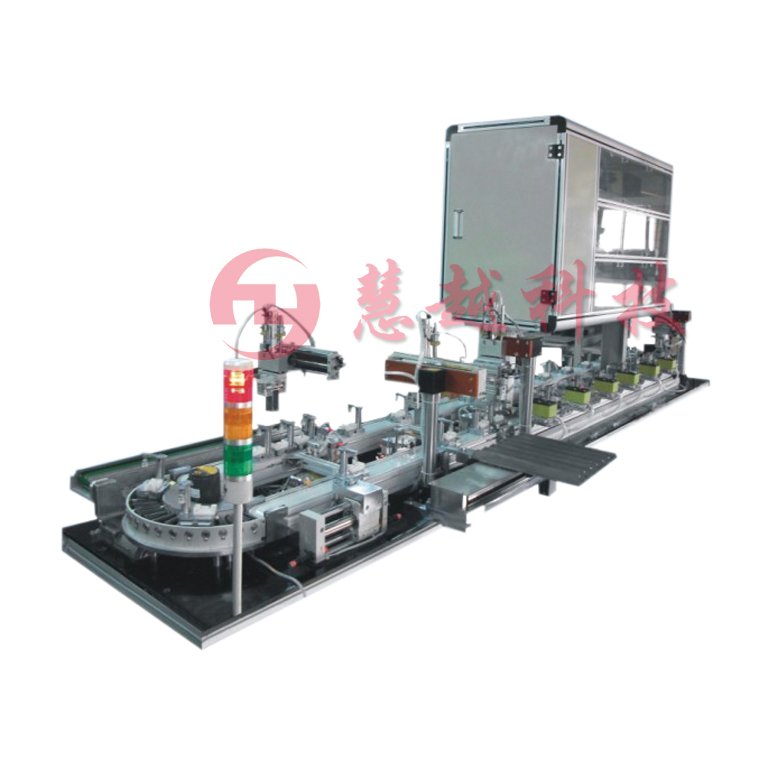

HY-D08 Integrated Test System
Integrated Test System features:
An automatic Coding
2,6-stop automatic product detection (detection, including: insulation, inductance, impedance, number of laps between layers, etc.)
3, automatic filter out bad products
4, Ichiban automatic regulation columns
5, automatic robot clamping products
6, automatic loose clamp products
7, power:
a, the main conveyor motor, 460W
b, rotary motors, 2 * 15W = 30W
C, servo motor, 400W
Product Specifications:
Power supply voltage: ac220 single phase <1000W
Work stations: 12 stations
Test function: test products according to customer order workstation, you can test up to four kinds of functions
Feeding methods: artificial feeding
Cutting way: Belt material flow tells
Hui more automated equipment can be customized non-standard automation equipment, fixtures and products according to customer requirements
Hui Yue service protection
1, host free one-year warranty and lifetime maintenance costs.
2, independent research and development, production and sales.
3, ten years of experience in manufacturing automation.
4, ready supply of spare parts.
5, tailor-made, absolutely zero risk.
