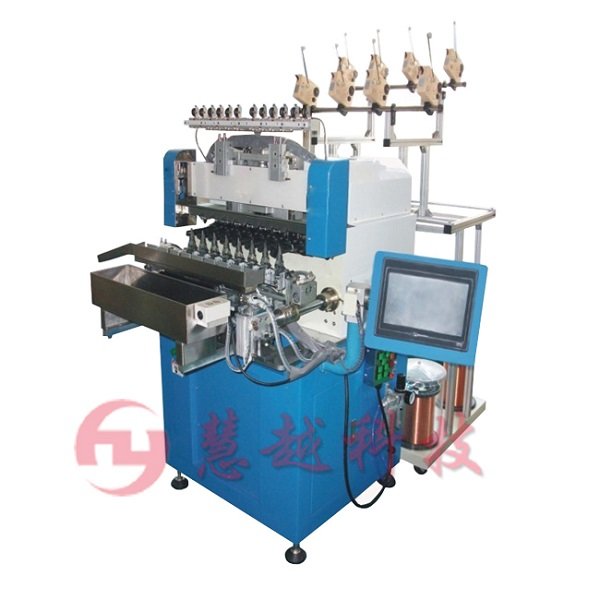

HY-R13 eight-axis automatic winding machine Details
Eight-axis automatic winding machine - Product Specifications:
Model HY-R13
Number 8 spindle axis
Servo motor power (W) X: 200 Y: 200 Z: 200 Spindle: 750 (standard) / 1500
The inner diameter of the spindle assembly jig Ф8mm (standard)
Spindle speed 12000RPM Standard / 18000RPM
ESM control precision six-axis CNC control software
Programming Windows interface liquid crystal exchange
Storage Direct Storage USB
Guided needle moving range X: 90mm
Y: 80mm
Z: 50mm
Spindle pitch 48mm
Swing diameter 45mm
Spindle positioning accuracy of ± 0.1 °
Mobile positioning 0.01mm
Foot-angle 0 °, 45 °, 90 °, 135 °
Use diameter 0.02-0.4mm (standard)
Pressure 4-6kgf / c㎡
Voltage AC220V / 50HZ (AC110V / 60HZ)
Total power consumption 2.2KW
Machine weight 500KG
Mechanical Dimensions 1350W * 1200L * 1700Hmm
Packing size 1200W * 1350L * 1750Hmm
Eight-axis automatic winding machine - Product Features:
New streamlined appearance, reasonable structure and movement rigidity, the only present our latest generation of software operation, high stability, capable peers can not handle the same product characteristics winding process, the accuracy of;
Using windows programming, load the latest version of ESM-performance software winding machine, equipped with IPC independent high-speed run, simple and user-friendly control interface teachings, Chinese, English optional dialogue, easy to operate;
All the important parts of global supply, making it the world's casting technology, reasonable and compact structure, movement rigidity, fast frequency response, high precision motion, machine stability, adapt to the larger work environment;
With self-diagnostic function, easy maintenance, with emphasis on how the machine-point protection, simple structure, less failure;
Automatic winding machine This series of models with automatic feeding system, automatic soldering system, automatic detection system, can be synthesized automated production lines;
