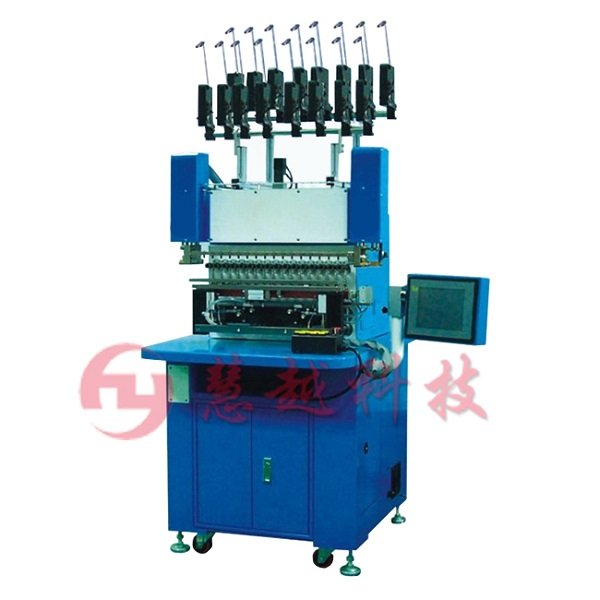

HY-R15 sixteen-axis automatic winding machine Details
Sixteen-axis automatic winding machine - Features:
a. teach touch interactive, user-friendly interfaces, easy handling, the cultural program management, easy to learn, five minutes to get started, no keyboard and an external power supply, input, machine time is short
b. An diagnosis, rapid overhaul
c. between the axis NC fill, spirally wrapped around the feet
d.CNC server drive, precise positioning
e. quick change core axle fixture
f. four kinds of angles feet wrapped PIN function
g. high speed high accuracy, improve the quality and the quality of the winding
h. can be stand-alone operation, can be paired with automated production
i. Can be used with automatic exchange of materials, scissors and pneumatic divination line equipment (special equipment)
Specifications:
Power supply voltage three-phase AC 220V ± 10% 50HZ / 60HZ
Power consumption 3KVA
Axis servo control method of synchronization control
Number 16 spindle axis
Spindle rotation 9000/12000/18000 standard / is reversed
Spindle pitch (mm) 33mm
Wire needle moving range (mm) 100mm X-axis (LEFT / RIGHT)
100mm X-axis (FORWARD / BACKWARD)
55mm Z axis (UP / DOWN)
Spindle positioning angle 0 - 360 ° / rev
Displacement accuracy 0.01mm
Spindle positioning accuracy of ± 1 °
Using Wire 0.02-0.04mm
Foot-Speed MAX: 150RPM
Cable speed 20-200mm / sec
Guide needle moves up to speed 12m / min
The maximum outer diameter of the skeleton (mm) 30mm
The maximum width of 90mm
Foot-angle selection 0 ° 45 ° 90 ° 135 °
Storage mnemonics USB + DOM64M (256M option)
Use air pressure 4-6kgf / cm2
Machine net weight (kg) 350kg
Mechanical weight after packing (kg) 450kg
Machine Size (mm) 1400L * 780W * 1680H mm
Mechanical Packing size (mm) 1600L * 1050W * 1750H mm
Optional Accessories stranding equipment
Servo Tensioner
Automatic switching feeding equipment
Automatic taping agency
