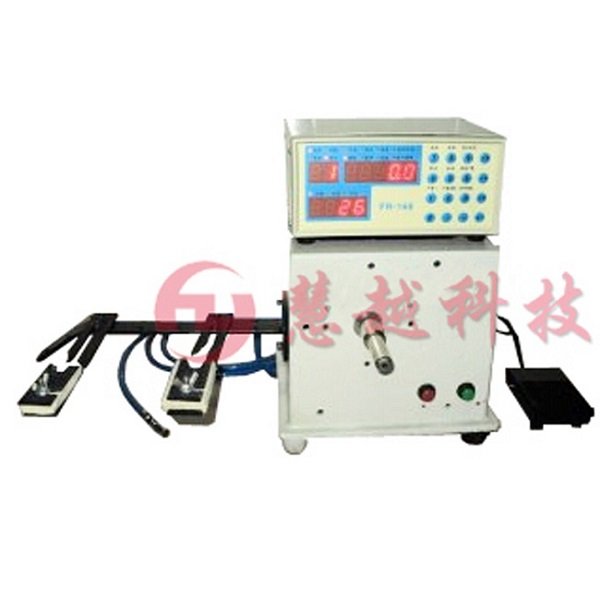

HY-R18 H inductance Winder Details
H inductance Winder: stable performance high-power, independent power supply, perfect protection circuit, use the latest brushless DC motor direct output, reliable performance, low failure rate.
The more brand-hui Technology Model HY-R18
Spindle axis direction positive step sequence memory capacity: 10 steps 40 groups each
H inductance winding machine Scope
1. Performance stable high-power, independent power supply, perfect protection circuit, use the latest brushless DC motor direct output, reliable performance, low failure rate.
2. No belt transmission mechanism, no carbon brushes, no mechanical wear and tear when used, free-for-belts, brushes.
3. High efficiency: the new brushless DC controller, with the brushless DC motor, has started fast, (2 laps after starting to reach maximum speed 8500 rpm), the motor brake function comes the Hall element.
4. Positioning accuracy: Winding positioning accuracy (up to ± 0.02 ring), after the completion of the winding, with automatic calibration function.
5. Multi-function: each product can be set independently winding parameters (including the number of turns, speed, winding direction), this controller has since slowly stop, can also ramp up the number of rings and other functions can be carried out simultaneously for the development of a thin line around the model.
6. Easy to use, easy to operate, easy to understand, thereby achieving high efficiency of production.
7. applies; their equipment home siding installation, automatic cable feature, instead of hand-flat cable.
8. equipment for its products (SMD chip inductors. H inductance. Color ring inductance, in the week) and the like.
Uniaxial H inductance winding machine technical parameters:
Power source: 220V / 50Hz ± 10%
Spindle motor: 100W brushless
Maximum speed: 8500 RPM
For diameter: 0.05-0.5mm
Winding width: 60mm
Weight: 18KG
Supporting: Different bobbin fixtures
